Stock #1088

Specifications:

Maximum Workpiece……………………….  38.4″ x 22.6″ x 11.6″

X Axis Travel…………………………………..    19.7″

Y Axis Travel……………………………………   11.8″

Z Axis Travel……………………………………   11.8″

U Axis Travel…………………………………..   3.9″

V Axis Travel…………………………………..   3.9″

Maximum Taper Angle……………………..  +/- 45 Degree

Maximum Workpiece Weight…………….. 3,400 lbs

Wire Diameter…………………………………. 0.004 – 0.014″

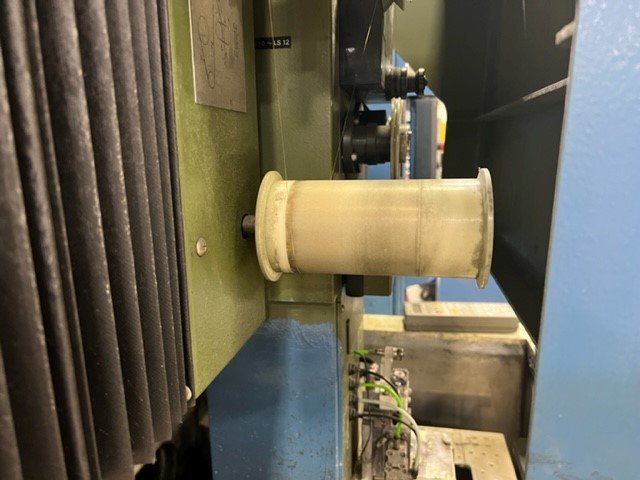

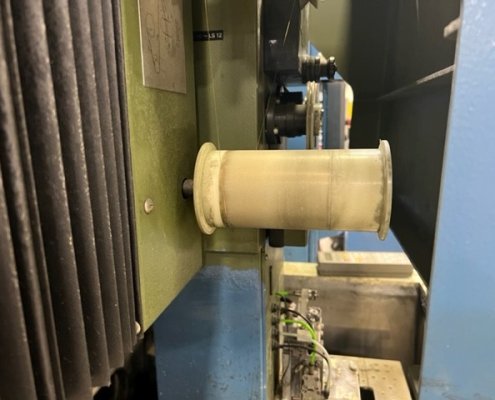

Wire Spool Feed Rate……………………….  60 – 590 IPM

Wire Tension…………………………………… 300 – 2,200 grams

Start Hole Diameter………………………….. 0.020″

Tank Capacity…………………………………    235 Gallons

Approximate Floor Space………………….  96″ x 90″ x 86″

Approximate Weight………………………… 7,725 LBS

Equipped With:

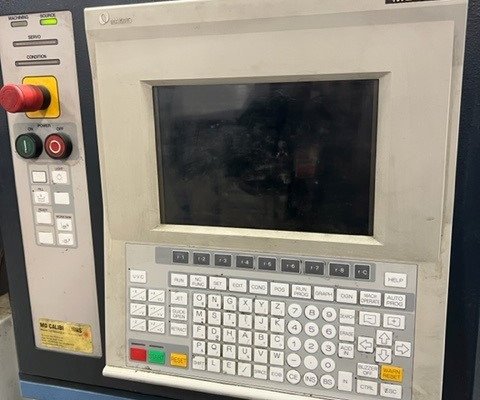

Windows CE Control with touch screen

Full Color, 15″ Touch Screen Display

Remote Pendant and Mouse

Auto Wire Threading

Submerged Machining

Chiller

Transformer

** Machine has 3,611 hours **
