Horizontal Machining Centers
Used CNC Machines For Sale in Loveland, Ohio
2016 Matsuura H-Plus 300 PC5 – 5-Pallet Horizontal Machining Center
Stock #1032
Specifications:
Travel X……………………………………………………… 19.68″
Travel Y……………………………………………………… 22.04″
Travel Z……………………………………………………… 19.68″
Pallet Center to Spindle End…………………………. 4.72″ / 24.41″
From Pallet Surface to Spindle Center……………. 3.15″ / 22.83″
Number of Pallets……………………………………….. 5
Pallet Size…………………………………………………. 11.81″ x 11.81″
Max Table Load Capacity…………………………….. 550 lbs.
Max. Work Envelope……………………………………. 20.86″ X 29.92″
Pallet Indexing……………………………………………. .001 Degree
Spindle Speed…………………………………………….. 20,000 RPM
Spindle Taper……………………………………………… CAT 40 Big Plus Spindle
Spindle Motor……………………………………………… 20 HP
Rapid Traverse X/Y/Z………………………………….. 2362.2 IPM
Tool Changer………………………………………………. 240 Tools
Tool Change Time……………………………………….. 2.4 Seconds Chip to Chip
Max Tool Weight………………………………………… 17 lbs.
Max Tool Diameter……………………………………… 3.54”
Max Tool Length…………………………………………. 11.81”
Machine Dimensions…………………………………….. 85” x 144” x 105” Tall
Machine Weight…………………………………………… 22,000 lbs.
Equipped With:
Matsuura G-Tech (Fanuc) 30i CNC Control
20,000 RPM Spindle
CAT 40 Big Plus Spindle
5 Pallet Pool
240 Tool ATC
1,000 psi Coolant thru Spindle
Scales X,Y & Z
Renishaw Spindle Probe
Renishaw MC-4 Laser
New price in 2016 was $440,000.00
2011 Okuma MB-4000H Horizontal Machining Center
Stock #1001
Specifications:
Travel X………………………………………………….. 22.05″
Y…………………………………………………… 22.05″
Z…………………………………………………… 24.61″
Spindle Center to Pallet Top……………………….. 1.97” ~ 24.02”
Spindle Nose to Pallet Center……………………. 3.35” ~ 27.95”
Pallet Size……………………………………………….. 15.75” X 15.75”
Max Table Load…………………………………………. 880 Lbs.
Pallet Indexing…………………………………………… 0.001 Degree
Max Workplace Diameter…………………………… 23.62” X 35.43”
Spindle Speed…………………………………………… 15,000 RPM (Integral Spindle)
Spindle Taper…………………………………………….. # 40
Rapid Traverse (X,Y,Z)……………………………….. 2,362 IPM
Cutting Feed Rate (X, Y, Z)…………………………. 2,362 IPM
Spindle Drive (10 MIN/CONT.)……………………….. 40/30 HP
Tool Capacity…………………………………………. 64 ATC
Max Tool Diameter w/ Adjacent Tool…………….. 2.76”
Max Tool Length………………………………………… 15.75”
Max Tool Weight………………………………………… 22 Lbs.
Machine Dimensions…………………………………… 185″ x 96″ x 106″ Tall
Machine Weight………………………………………….. 20,900 lbs.
Equipped with:
OSP-P200MA CNC Control
15”: CRT – Color Graphics
Auto Touch Off
Simple Load Monitoring
Tool Life Management
Tool Breakage Detection
Shower Coolant
Coolant thru Spindle
Prepped for 1,000 psi Coolant Pressure
Chip Conveyor
(2) TECO Quick Change Tombstones
Only 5,739 Cutting Hours. Machine is in Excellent Condition. Inspect Under Power.
Delivered new in 2012.
2017 Kitamura MyCenter HX-250iG Horizontal Machining Center
Stock #980
Year: 2017
Manufacturer: Kitamura
Model: HX-250iG
Control: Arumatik Mi
Pallet: 254mm
X-Axis: 12″
Y-Axis: 12″
Z-Axis: 13″
Taper: BT 30
RPM: 15,000
Options: 40 Tools .001 Degree 1,000 psi CTS
Specifications:
Table Size 10” x 10”
Table Indexing 0.001 Degree (4th Axis)
Tapped Hole Size M12 x 1.75 x 8
Maximum Table Load 100kg (220 Lbs.)
Maximum Workpiece Diameter Ø350mm (Ø13.8”)
Maximum Workpiece Height 400mm (15.7”)
X-Axis Travel 12”
Y-Axis Travel 12”
Z-Axis Travel 13”
B-Axis Travel 0 to 360 Degrees
Distance from Table Surface to Spindle Center 2.4” to 14.4”
Distance from Table Surface to Floor 2.4” to 15.4”
Spindle Taper #30 NST
Spindle Speed 150 to 15,000 Direct Drive System
Drive Method 11kw (15 HP) AC/30 Min.
Spindle Motor 7.5kw (10 HP) AC/Cont.
Rapid Feed X, Y, Z 2,362 IPM
Cutting Feed Rate X, Y, Z 2,362 IPM
Rapid Feed (B Axis) 108,000 deg/min (300 rpm)
Number of Pallets 2
APC Change Time 8.0 Seconds
Tool Storage Capacity 40 Tools
Tool Holder Style CAT 30
Tool to Tool Change Time 1.2 Seconds
Chip to Chip Change Time 2.8 Seconds
Machine Dimensions 116.80” x 115.72” x 89.9” Tall
Machine Net Weight 11,814 Lbs.
Equipped with:
Arumatik-Mi Control (Fanuc 18iM) w/19” Color LCD
1,000 PSI Coolant thru Spindle
Renishaw Optical Tool Setter
B-K Micro in Magazine Tool Breakage Detection
Mist Collector
Scraper Type Chip Conveyor with Filtration
2 Station Automatic Pallet Changer
New Price is 2017 was $240,000.00
***4,205 Power On Hours***
2006 Union Model FC-1 Traveling Column Universal Machining Center
Stock #975
| Specifications: | |
| X axis travel Y axis travel Z axis travel A axis travel B axis travel Rotary table size Rotary table load capacity Floor Plate size Table load capacity Spindle Spindle Speed Spindle Torque / Power Rapid traverse rates (X, Y & Z) Automatic tool changer capacity |
394″ 102″ 63″ +/- 120 degrees 360 degrees 79″ x 98″ 44,000 lbs. 79″ x 315″ 8,000 lbs. CAT #50 5000 rpm 600 Ft-lbs / 50 HP MTDR 787 IPM 24 tools |
Equipped with:
Heidenhain iTNC530 Control
Heidenhain Scale Feedback
Roller Guide axes bearings
Operator cabin with controls
Coolant thru spindle (300 PSI) with filtration system
CNC Universal head with 2.5 degree resolution
Chip conveyor
Complete documentation
Service package – machine installation available, 4 days operator training and 30 day warranty available at additional cost.
2012 Kitamura HX-400G Horizontal Machining Center
Stock #987
Year: 2012
Manufacturer: Kitamura
Model: HX-400G
Control: Arumatik Mi
Pallet: 400mm
X-Axis: 24″
Y-Axis: 24″
Z-Axis: 24″
Taper: CAT 40
RPM: 15,000
Options: 50 Tools .001 Degree
Specifications:
Table Size………………………………………………….. 15.75 x 15.75
Table Indexing……………………………………………. 0.001 Degree (4th Axis)
Maximum Table Load………………………………….. 770 Lbs.
Max. Workpiece Diameter…………………………… 24.80”
Max. Workpiece Height………………………………. 29.33
Travels X-Axis Travel………………………………….. 24.0
Y-Axis Travel………………………………….. 24.0
Z-Axis Travel………………………………….. 24.0
Distance from Table Surface to Spindle Center..1.57 to 25.59
Distance from Table Center to Spindle Nose….. 3.94 to 27.95
Spindle Taper…………………………………………….. CAT 40
Spindle Speed……………………………………………. 20 to 15,000rpm
Spindle Motor……………………………………………… 20 HP (15.0kw) AC/10 Min. 10 HP (7.5kw) AC/Cont.
Rapid Feed X, Y, Z………………………………………. 1969 IPM
Cutting Feed Rate X, Y, Z…………………………….. 1969 IPM
Rapid Feed (B Axis)…………………………………….. 12,000deg/min (33.3rpm)
Positioning Accuracy……………………………………. ±0.000079”
Repeatability……………………………………………… ±0.000039”
Number of Pallets………………………………………… 2
APC Change Time……………………………………… 10.0 Seconds
Tool Storage Capacity…………………………………. 50 Tools
Power Requirement……………………………………… 45 KVA, 200v AC, 3 Phase
Air Requirement………………………………………….. 90 psi, 12 cfm
Machine Dimensions…………………………………… 120” x 168” x 108” Tall
Machine Net Weight……………………………………. 30,360 Lbs.
Equipped with:
Arumatik Mi CNC Control
Full 4th Axis Rotary Table – .001 Degree
Coolant thru Spindle (435 psi)
Renishaw OMP-400 Part Probe (Digital)
Solid Boxed Ways
Internal Chip Augers
Manual Remote Pulse Generator, Fixed on the Control Panel
High Precision Contour Control
Hard Disk Drive 8GB – USB Memory Interface
Chip Conveyor
5,372 Spindle Hours
(3) Te-Co Tombstones (1) is a Double Lock Vise Tombstone that was $13,000 new.
20 – 30 Toolholders
2005 Mazak Nexus HCN 6000 Horizontal Machining Center
Stock #986
Year: 2005
Manufacturer: Mazak
Model: HCN6000
Control: Fusion 640M
Pallet: 500mm
X-Axis: 31.5″
Y-Axis: 31.5″
Z-Axis: 31.5″
Taper: CAT 50
RPM: 10,000
Options: 43 Tools 1 Degree 213 psi CTS
Specifications:
Pallet Size……………………………………… 19.7″
Number of Pallets…………………………….. 2
Travel: X-Axis…………………………………..31.5″
Travel: Y-Axis…………………………………..31.5″
Travel: Z-Axis…………………………………..31.5″
Pallet Index……………………………………..One Degree
Spindle Speed…………………………………10,000 RPM
Spindle Motor…………………………………..50 / 40 HP AC
Spindle Taper…………………………………. CAT 50
Spindle Center to Table Top…………….. 3.94″ – 35.43″
Spindle Nose to Table Center…………….5.91″ – 37.40″
Spindle Torque…………………………………388 ft. lbs.
Spindle Ranges…………………………..2 (Electronic Shift)
Full Horsepower…………………………..3400 rpm
Tools…………………………………………..… 43
Tool Change Time (C – C)…………………3.5 Seconds
Rapid Traverse Rates……………………… 2363 IPM
Pallet Load Capacity……………………..….2,200 lbs.
Max Workpiece Size (Dia. / Height)……. 35.43″ / 39.37″
Machine Dimensions (L x W x H)………..274″ x 111″ x 132″
Machine Weight………………………………. 33,060 lbs.
Equipped with:
Mazatrol Fusion 640M CNC Control
43 Position Tool Chain
213 PSI Coolant thru Spindle with High-Pressure Preparation
EIA/ISO and Conversational Programming
Inch / Metric Conversion
Rigid Tapping
MP-10 Probe Ready (No Probe)
Adaptive Feedrate Control
Tool Life Monitoring
Tool Breakage Detection
Spindle Chiller Unit
Chip Conveyor- Rear Disposal CON SEP
1995 Okuma MC-600H Horizontal Machining Center
Stock #940
Year: 1995
Manufacturer: Okuma
Model: MC-600H
Control: OSP7000
Pallet: 630mm
X-Axis: 34.7″
Y-Axis: 33.5″
Z-Axis: 29″
Taper: CAT 50
RPM: 6,000
Options: 40 Tools 1 Degree 2 Pallets
Specifications:
Pallet Size: 24.8″ x 24.8″
Number of Pallets: 2
Pallet Index: 1 Degree
X-Axis Table Travel: 34.725″
Y-Axis Spindle Head Travel: 33.5″
Z-Axis Column Travel: 29.0″
Rapid Traverse Rate: 490 IPM
Spindle Taper: CAT 50
Spindle Speeds: 6,000 RPM Two Gear Ranges
Spindle Drive Motor: 25 HP AC
Tool Changer: 40 Positions
Tool Changer Type: Side Mount
Power Requirement: 220/440v, 43 kva, 3 phase
Equipped with:
OSP 7000 CNC Control
2-Pallet Changer
2001 UNION MODEL TC 130 CNC HORIZONTAL BORING MILL
Stock #929
Year: 2001
Manufacturer: Union
Model: TC-130
Control: Heidenhain TNC426
Pallet: 63″ x 79″
X-Axis: 98″
Y-Axis: 98″
Z-Axis: 59″
Taper: #50
RPM: 3,000
Options: 5.1″ Spindle .001 Degree 60 Tools Coolant Thru Spindle
Specifications:
Diameter of Spindle…………………………. 5.1″
Spindle Taper…………………………………. #50
Table Size……………………………………… 63″ x 79″
Spindle Travel (W)………………………….. 30″
Cross Travel (X)……………………………… 98″
Vertical Travel (Y)……………………………. 98″
Longitudinal Travel (Z)……………………… 59″
Rotation of Table (B)……………………….. .001º
Table Capacity……………………………….. 22,000 lbs.
Spindle Speeds………………………………. 5 to 3000 RPM
Spindle Motor…………………………………. 50 KW (67 HP)
Machine Weight………………………………. 65,000 lbs.
Automatic tool changer……………………… 60 Tools
Equipped With:
Heidenhain TNC 426 Control
Thru Spindle Coolant
Filtration System
Chip Conveyor
2010 Union Model KCU 150 with Siemens 840D CNC Planer Type HBM with CNC Facing Head
Stock #927
Year: 2010
Manufacturer: Union
Model: KCU-150 Boring Mill
Control: Siemens 840D
Pallet: 79″ x 98″
X-Axis: 126″
Y-Axis: 118″
Z-Axis: 59″
Taper: CAT 50
RPM: 3,000
Options: 60 Tools 6″ Spindle .001 Degree 4th axis 300 PSI Coolant Thru Facing Head Scale Feedback
Specifications:
X axis travel……………………………………3200 mm (126”)
Y axis travel…….………………………………3000 mm (118”)
Z axis travel…………………………………….1500 mm (59”)
W axis travel (Spindle bar)………………………700 mm (30”)
U axis travel (Facing slide)………………………200 mm (8”)
B axis travel (Rotary table) …..……………….. .001 Degree Contouring
Rotary table size………………………………………79” x 98”
Rotary table load capacity……………………………44,000 lbs.
Spindle bar size / tool flange………………………6” / CAT #50
Spindle speed…………………………………………3000 rpm
Spindle torque / power………………..1610 Ft-lbs / 62 HP cont.
Rapid traverse rates (X, Y & Z)………………………. 590 IPM
Automatic tool changer capacity…………………..……60 tools
Machine Features & Options-
Siemens 840D CNC Control
Heidenhain Scale Feedback
Roller Guide axes bearings
.001 Degree Contouring Table

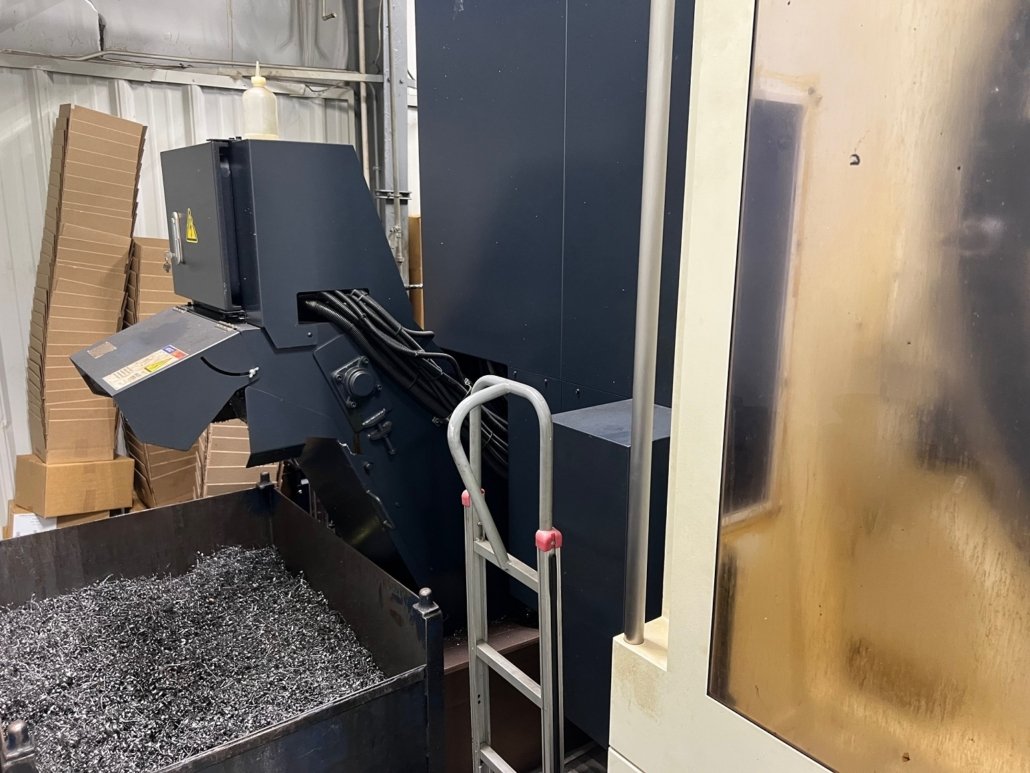

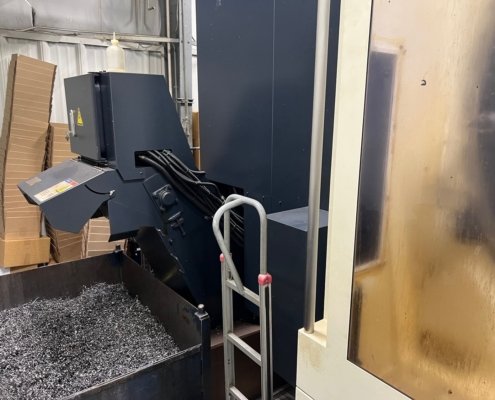

Machine guarding for chips, coolant and chip conveyor
Coolant thru spindle (300 PSI) with filtration system
Integral CNC Facing head with “pass thru” spindle
Facing head range up to 48” diameter
Facing head speed range from 2.5 to 330 RPM
Complete documentation
